Specifications
TMTeck design cross hatch cutter is applicable to determine the adhesion of organic coatings by cross-hatching.
This instrument is designed for assessing the resistance of paint or related coatings to separation from substrates when a right-angle lattice oattern is cut into the coating, penetrating through to the substrate.
The Cross Hatch Cutters conform with the requirements of :BS 3900 E6;BS/EN ISO 2409;ASTM D 3359;GB/T 9286, ,it is economy.
Main Technical Parameters
- Six working side blades:When the blade edge is not sharp enough, users can loosen the boat type nut and top thrust screw to change blade.
- Multi-cutting blades spacing:1mm/2mm/3mm
- The number of square:25squares/100squares
Main technical parameters
| Working | Width of blade | Hardness | Coat thickness | ||||
| blade | end | ||||||
| 1mm | 6 tooth | 0.03mm, 0.06mm | Hard | 0-60μm | |||
| 1mm | 11 | 0.03mm, 0.06mm | Hard | 0-60μm | (0-50μm ASTM) | ||
| tooth | |||||||
| 2mm | 6 tooth | 0.03mm, 0.06mm | Hard & | 61-120μm (50-125μm | |||
| Soft | ASTM) | ||||||
| 2mm 11 tooth | 0.03mm, 0.06mm | Hard & | 61-120μm(50-125μm | ||||
| Soft | ASTM) | ||||||
| 3mm | 6 tooth | 0.03mm, 0.06mm | Hard & | 121-250μm | |||

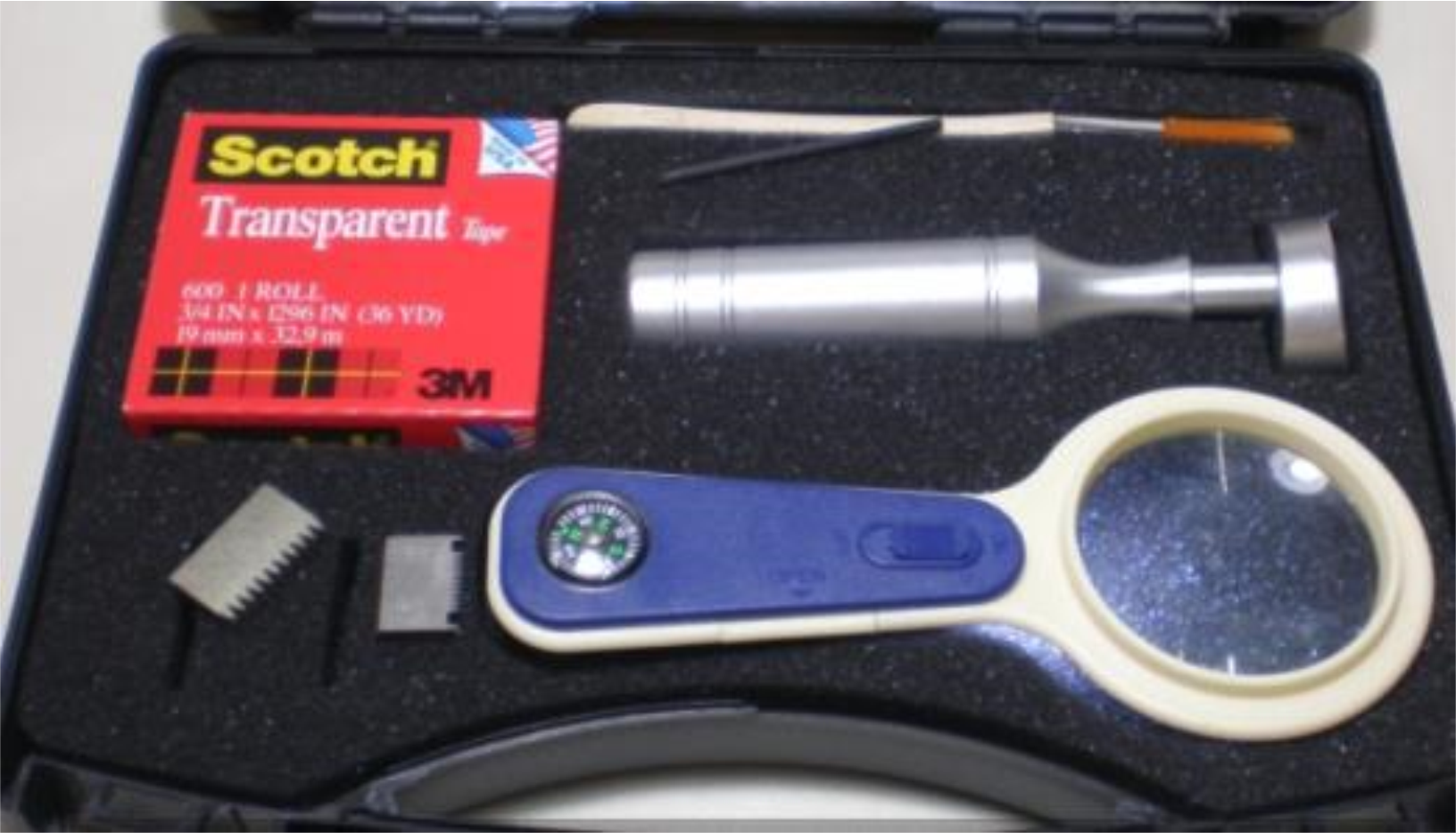

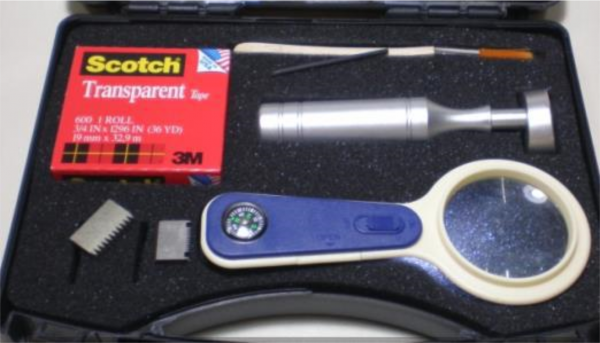

Standard package
Cross Hatch Cutter:1pcs
Magnifier: 1pcs
Brush:1 pcs
Gummed tape(3M):1pcs
