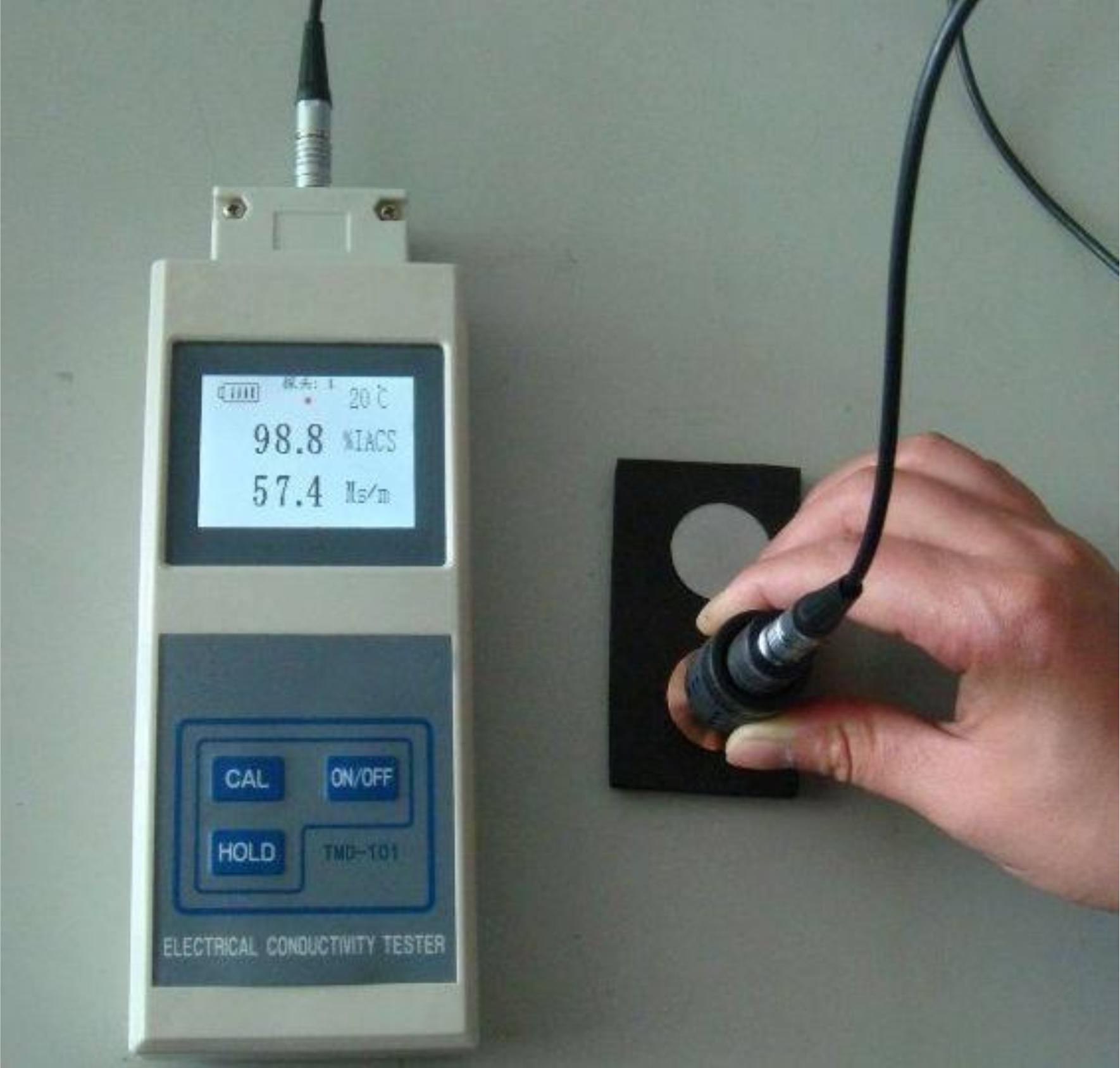

TMD-101 is a kind of eddy current electrical conductivity meter, which is designed for q uick & convenient measurement of material property, such as material separate quality co ntrol material state check and so on. It uses the electromagnetism testing principle. Testin g objects focus on non-ferromagnetic material.

FEATURES

The meter uses 60 KHz (aviation industry standard) to inspirit.
The testing data can be read in two kinds of unit: %IACS and MS/m.
Its big typeface, the back light illumination designs are advantageous for users to take the testing data even in low light condition.
It uses the high property battery to make sure it keeps more running time, and because of its mini-size, it is easy to carry and to grasp hold.
The design of the meter is more advantages: user can replace the probe in the outdoor,don’t need to return to the company to adjust the probe into matching the meter.
It can hold measurement data.

Applications

Test the conductivity of aluminum, copper and other non-ferrous magnetic metal in the processing industry.
In the aerospace and automotive industries monitor the process of heat treatment, the stzength and hardness of aluminum alloy.
Test the conductivity aluminum when it has not been oxidized.
Test the purity grade of materials.
Test materials resistivity
Material Thermal Performance analysis.

Technical Parameters

NAME CONTENT
Measurement technology Eddy current
Operating frequency 60KHz 120 KHz
Display screen Monochrome
L*B*H 180*75*30 mm
Instrument case Anti-intense impact  water-proofing polyester.
Weight 290g
Power supply High capacity, high performance lithium polymer battery
Measuring range 6.9%IACS—110%IACS(4.0 MS/m -64MS/m)
Distinguishing rate 0.1% IACS
0°C to 50°C
Measuring accuracy 0~23%IACS  ±0.1%IACS
23%IACS~110%IACS  ±0.3%IACS
Temperature compensation Automatic compensation to the value of 20  .
Relative 0 95%
Normal work humidity
environment
Operating 0 50
temperature
Language English
Fitting Portable box; probe; probe in cable; operating manual;
conductivity standard sample; adapter.
Diameter:12.7mm
Probe Applicable to minimum measuring area diameter at 60KHz
is10mm.

Note: The conductivity measurements automatically rectified to the value at
