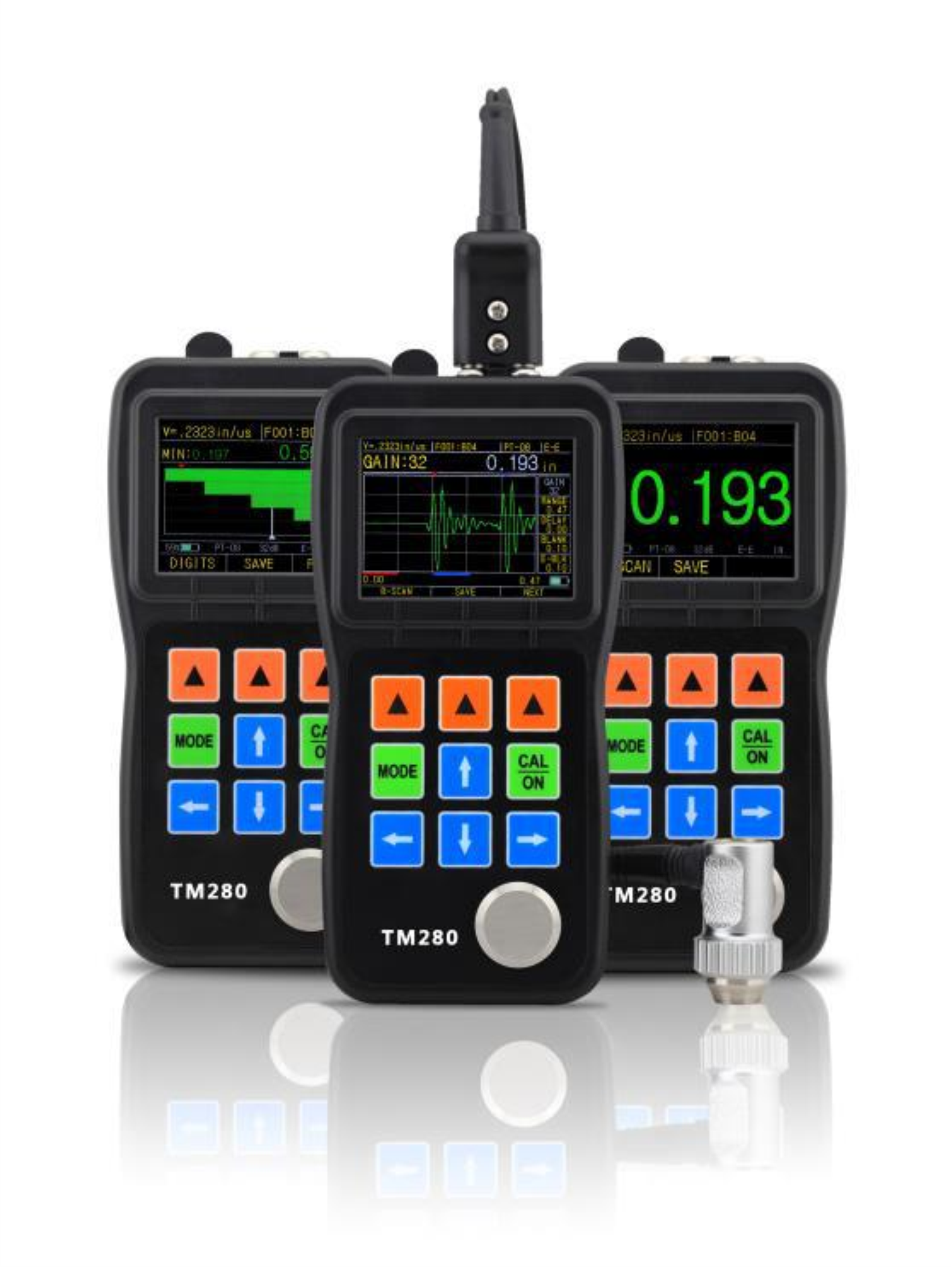

Technical Specifications

Feature TM280 TM280D TM280DL Data Logger Option
Color Display
LiveA-Scan
Time-based B-Scan
Control of Gain,
Blanking,Gate, Range,
Delay, RFand Rectify
Modes
Echo-Echo Mode ×
(Thru-paint &Coatings)
Data Logger × ×
DataView Software × ×

Instrument Specifications

Display Type 2.4” color OLED, 320 X 240 pixels, contrast 10,000:1
Operating Principle Pulse echo with dual element transducers
Measuring Range 0.50mm to 508mm(0.02” to 20.00″), depending on material, probe and surface
condition
Measuring Resolution Selectable 0.01mm, 0.1mm(selectable 0.001″, 0.01″)
Units Inch or Millimeter
Rectify Modes RF+, RF-, HALF+, HALF-, FULL
Display Mode Normal, Minimum / Maximum capture, DIFF/RR%, A-Scan, B-Scan
V-Path Correction Automatic
Update Rate Selectable 4Hz, 8Hz, 16Hz
Material Velocity Range 500 to 9999m/s (0.0197 to 0.3937in/us)
Languages English
Alarm Settings Minimum and Maximum alarms. Range of 0.25 mm to 508 mm (0.010″ to 20.00″)
Dynamic waveform color change on alarm
Power Requirements 2 AA size batteries
Operating Time Approximately 40 hours
Instrument Shut-off Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of inactivity
Operating Temperature -10°C to +50°C (+10°F to +120°F)
Size 153mm X 76mm X 37mm(H X W X D)
Weight 280g including batteries

Data Logger Option Features

Data Logger  Option Features
Capacity 100,000 readings,1000 waveforms, 400 files
File Structure Grid file
Rows X Columns 21 X 12
Communication Port USB 2.0 (Full Speed ) port
Software DataView PC software

TM280 Probe/Transducer Specifications

TM280 Probe/Transducer Specifications
Model PT08 TC510 PT12 ZT12 PT06 PT04 GT12
Type TM280 TM280D/ Standard Cast iron Small tube Fingertip High-
Standard DL Temperature
Standard
Frequenc 5MHz 5MHz 5MHz 2MHz 7.5MHz 10MHz 5MHz
y
Contact 11mm 13.5mm 13.5mm 17mm 8mm 6mm 15mm
Diameter
Measure 0.8 to 1.2 to 1.0 to 4.0 to 0.8 to 0.7 to 4 to
ment 100.0mm 200.0mm 200.0mm 508mm 30mm 12mm 80mm
Range
Temperat -10 to -10 to 70℃ -10 to 70℃ -10 to -10 to 70℃ -10 to 70℃ -20 to 300℃
ure 70℃ 70℃
Range
