FEATURES
- Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
- Compact size, small weight, easy handling
- Prompt testing of vibration on the workshop machines
- For quick checking of unbalance misalignment, bearings and gears ·Guard against mechanical malfunction
- Holding tested value for 40 seconds
- Automatic switch off after 40 seconds

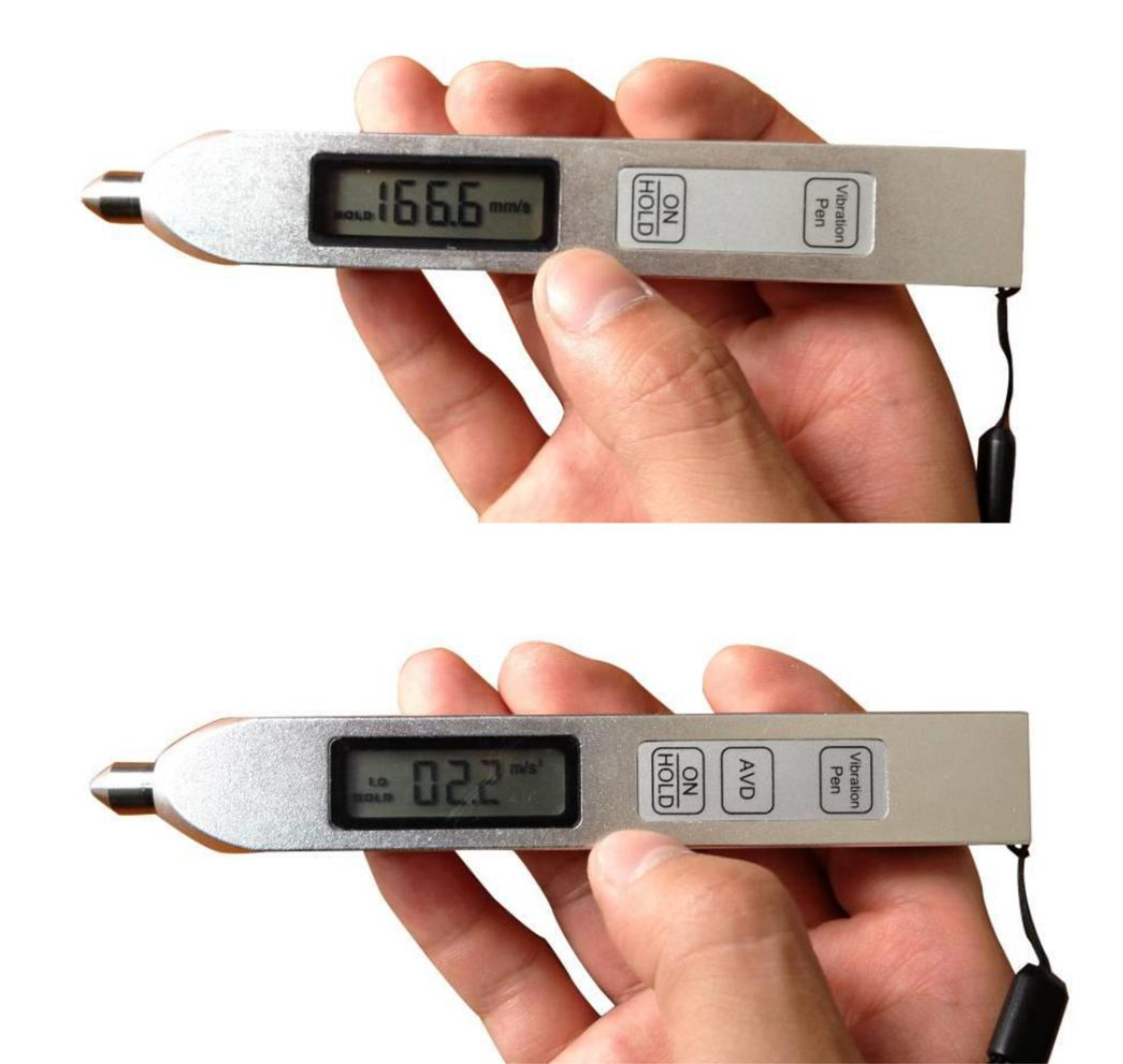

- TMV210 is used specially for velocity testing
- TMV280 is used for acceleration, velocity and displacement testing
Technical Specifications
| Model | TMV210 | TMV280 | ||||||||||
| Parameter | RMS of vibration velocity (mm/s) | Acceleration, Velocity, Displacement | ||||||||||
| Testing range | Velocity: 0.1mm/s~ 199.9mm/s | Acceleration:0.1m/s2-199.9m/s2(peak) | ||||||||||
| Velocity: 0.1mm/s-199.9 mm/s(RMS) | ||||||||||||
| Displacement: 0.001mm-1.999 mm | ||||||||||||
| (peak-peak) | ||||||||||||
| Frequency range | Velocity:10Hz ~ 1kHz | Acceleration: 10Hz ~ 1kHz(LO) | ||||||||||
| 1kHz ~ 15kHz(HI) | ||||||||||||
| Velocity: 10Hz ~ 1kHz | ||||||||||||
| Displacement: 10Hz ~ 500Hz | ||||||||||||
| Accuracy | ±5% ± 2digits | |||||||||||
| Display | 3 1/2 digits LCD | |||||||||||
| Power supply | two button batteries(LR44 or SR44) | |||||||||||
| Battery capacity | Approx. 5 hours working continuously | |||||||||||
| Operating temperature | 0℃ ~ 40℃ | |||||||||||
| Humidity | <85% | |||||||||||
| Dimension | 150mm×22mm×16mm | |||||||||||
Configuration
| NO. | Item | Quantity | ||||||||||
| 1 | Main uni. | 1 | ||||||||||
| Standard Configuration | ||||||||||||
| 2 | Screwdriver | 1 | ||||||||||
| 3 | Batteries SR44\LR44 1.5V | 2 | ||||||||||
| 4 | Box | 1 | ||||||||||
| 5 | Document | 1(set) | ||||||||||
