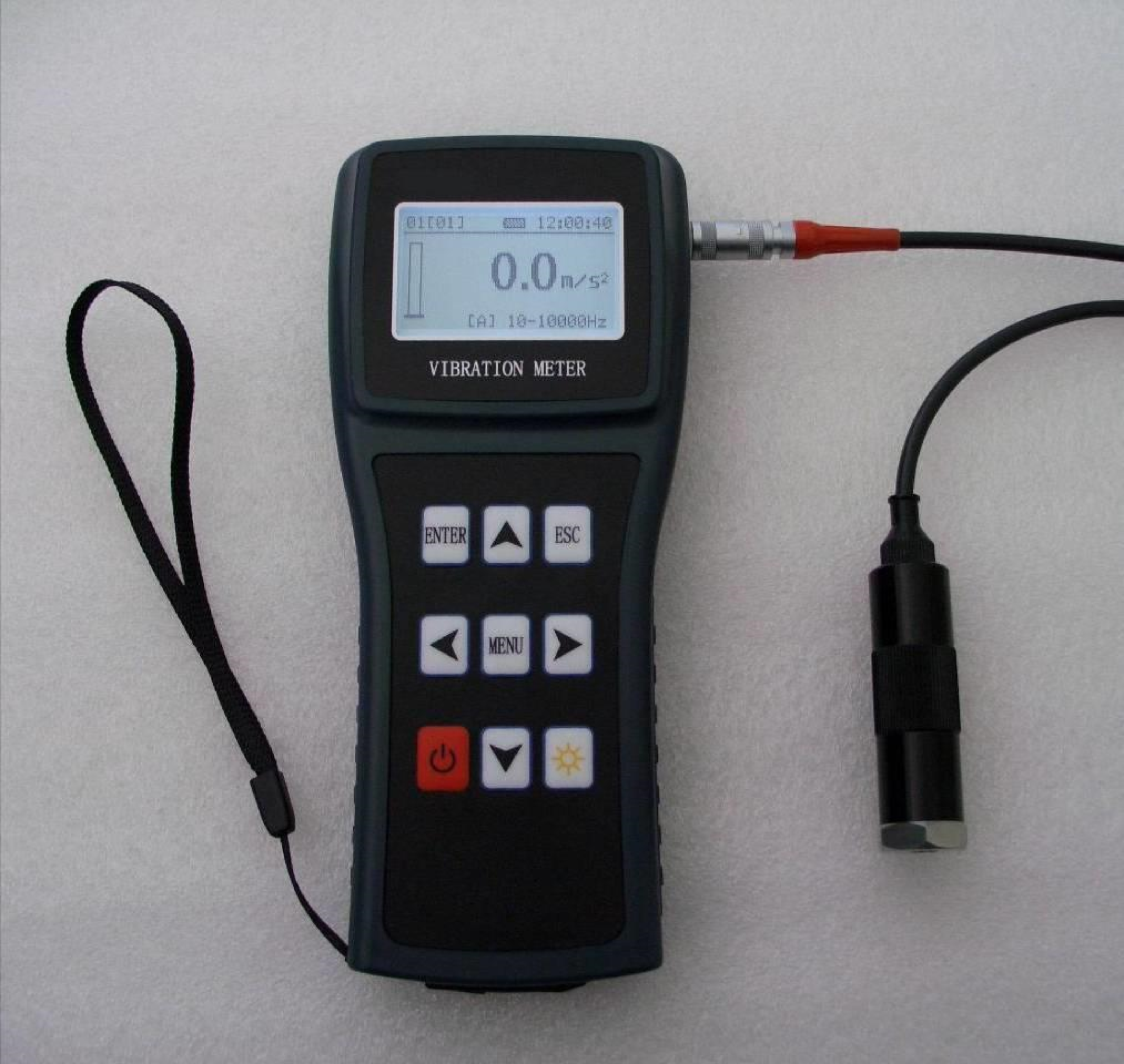

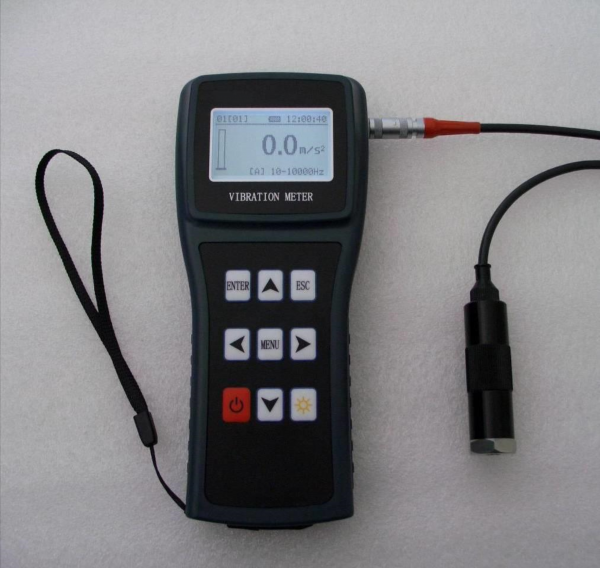

Model TMV110 portable vibration meter is suitable for routine vibration measurement,
especially in reciprocating machinery vibration measurements. It can not only measure the vibration acceleration, velocity or displacement, but also for rotational speed measuring.
This product use optimized-filtering method to ensure stable and accurate measurement indication in multi-interference measurements environment. And the product of smart appearance, white backlit display is easy to use in complex environment.

FEATURES

All English display, easy to operate. White backlight for better operation in the dark.
It is suitable for acceleration Peak data, velocity RMS data and Displacement Peak-Peak data measurement. It also provides measurements histogram in real time.
Lowpass Filter can be set by users.
Storage up to 10 points (10 data per point), a total of 100 data and time.
Warning limit can be preset. Alarm when the measuring value exceeds the warning limit.
Provid high-performance rechargeable Li battery and charging control circuit inside with extra-long working and standby time. Battery sign, display the current remaining
capacity.

Configuration

NO. Item Quantity
1 Main unit 1
2 Power Adapters
(input:220V/50Hz,output:6V/1000mA) Choose one
Standard Power Adapters
(input:110V/50Hz,output:6V/1000mA)
Configuration
4 Piezoelectric sensors 1
5 Magnetic seat (with 2 bolts) 1
6 Manual 1
7 Product Packaging 1 set

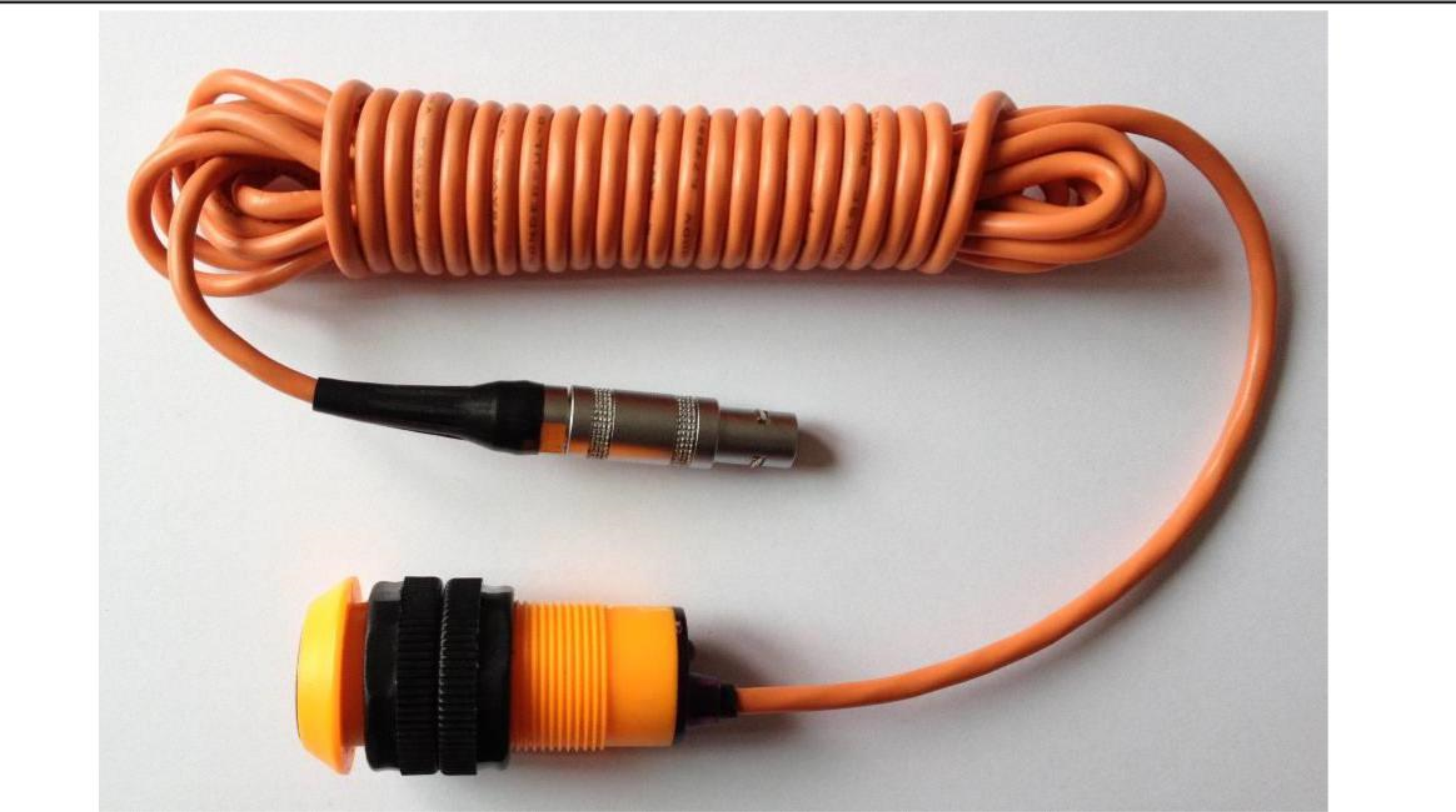

8 Speed transducer (Lacer) 1
Optional
9 Communication cable 1
Configuration
10 Micro-printer 1
11 Probe 1

Technical Specification

Model TMV110
Acce: 0.1 m/s2 ~ 199.9 m/s2(peak)
Testing range Velo: 0.01 cm /s ~ 19.99cm /s(RMS)
Disp: 0.001mm ~ 1.999mm(peak-peak)
Freq range Acce: 10Hz ~ 10kHz
Velo: 10Hz ~ 1kHz
Disp: 10Hz ~ 500Hz
Tolerance ±5%
Speed measuring range 30 ~ 60000 rpm
corresponding to 0.5 ~ 1000Hz
Measuring distance 0.15 ~ 1m
Temp 0℃ ~ 40℃
Display LCD,128×64 pixels with LED backlight
Data memory 10×10
Limit alarm Yes(Beep)
Print Data(External portable printer)
Battery Rechargeable Li battery,1800mAh
Continuous working time About 100h(without backlight)
Charge About 5 hours
Software No
Lowpass filter Yes(User can set the cut-off frequency freely)

The product especially have excellent accuracy and stability when used in high-frequency vibration spindle object (such as spindle CNC machine tools, woodworking motor, etc.).
