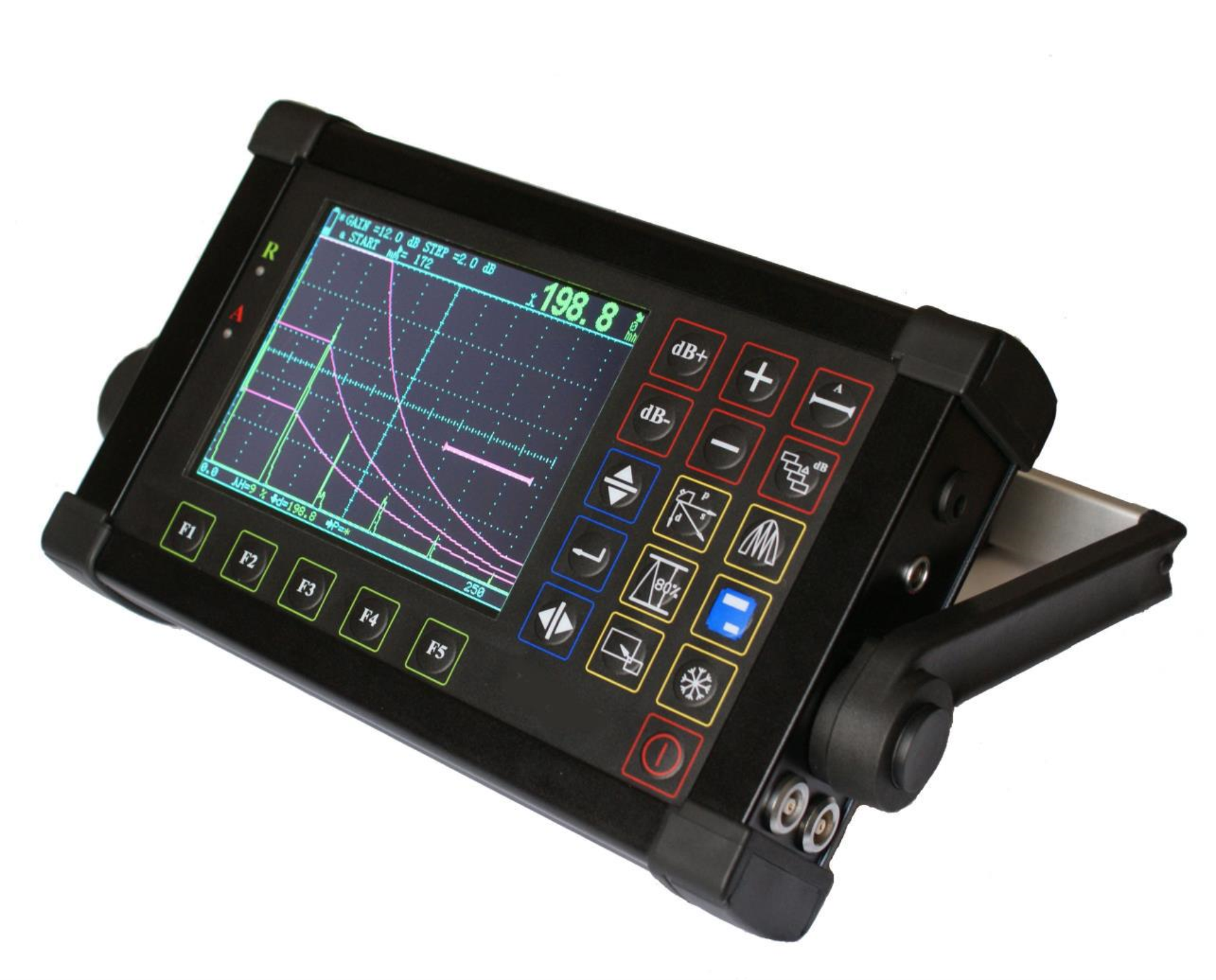

PRODUCT INFO
·Automated calibration Automated gain
·Automated make video of test process and play
·DAC AVG & B scan, AWS function, 6dB DAC
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel through RS232/ USB interface
Features
· Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz
dB, ф)
· Automated switch three staff gauge ((Depth d, level p, distance s)
· Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
· Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
· 100 independence setup, any criterion can be input freely, we can work in the scene without test block
· Big memory of 300 A graph and 30000 thickness value
· Automated gain and gain scan
· Automated make video of test process and play
· Peak Hold and Peak Memory
· B scan
· Powerful pc software and reports can be export to excel
· The embeded software can be online updated
· Li battery, continue working time up to 10 hours
Other Assistant Function
· Display freeze;
· Automated echo degree;
· Angles and K-value;
· Lock and unlock function of system parameters;
· Dormancy and screen savers;
· Electronic clock calendar ;
· Two gates setting and alarm indication;
· Gate and DAC alarm;
Specification
| Title | Parameter | Title | Parameter | |
| Measuring Range(mm) | 2.5 ～ 6000 | Measurement Mode | Single, Dual, Thru | |
| Vertical Linearity Error | ≤3% | Reject | 0~80% | |
| Horizontal Linearity | ≤0.1% | Pulse Displacement(μs) | -20 ～ +3400 | |
| Error | ||||
| Sensitivity Leavings | ≥62dB | Zero(μs) | 0.0 ～ 99.99 | |
| Dynamic range | ≥34dB | Port Type | BNC | |
| Resolving Power | ≥36dB | Operating | -20～50 | |
| Temperature (℃) | ||||
| Frequency | 0.5 ～ 20 | H×W×D(mm) | 210×156×40 | |
| Range(MHz) | ||||
| Gain(dB) | 0 ～ 110 | Weight(kg) | 1.0 | |
| Material Velocity(m/s) | 1000 ～ 13000 |
TFD320 Standard Configuration
| No. | Item | Quantity |
| 1 | Main Body TFD310 | 1 |
| 2 | Straight Beam Probe | 1 |
| 3 | Angle Probe | 1 |
| 4 | Machine-probe Cable | 2 |
| 5 | Battery Module | 1 |
| 6 | Power Adapter (Charger) | 1 |
| 7 | Manual | 1 |
| 8 | Instrument Case | 1 |
| 9 | Datapro Software | 1 |
| 10 | USB communication Cable | 1 |
