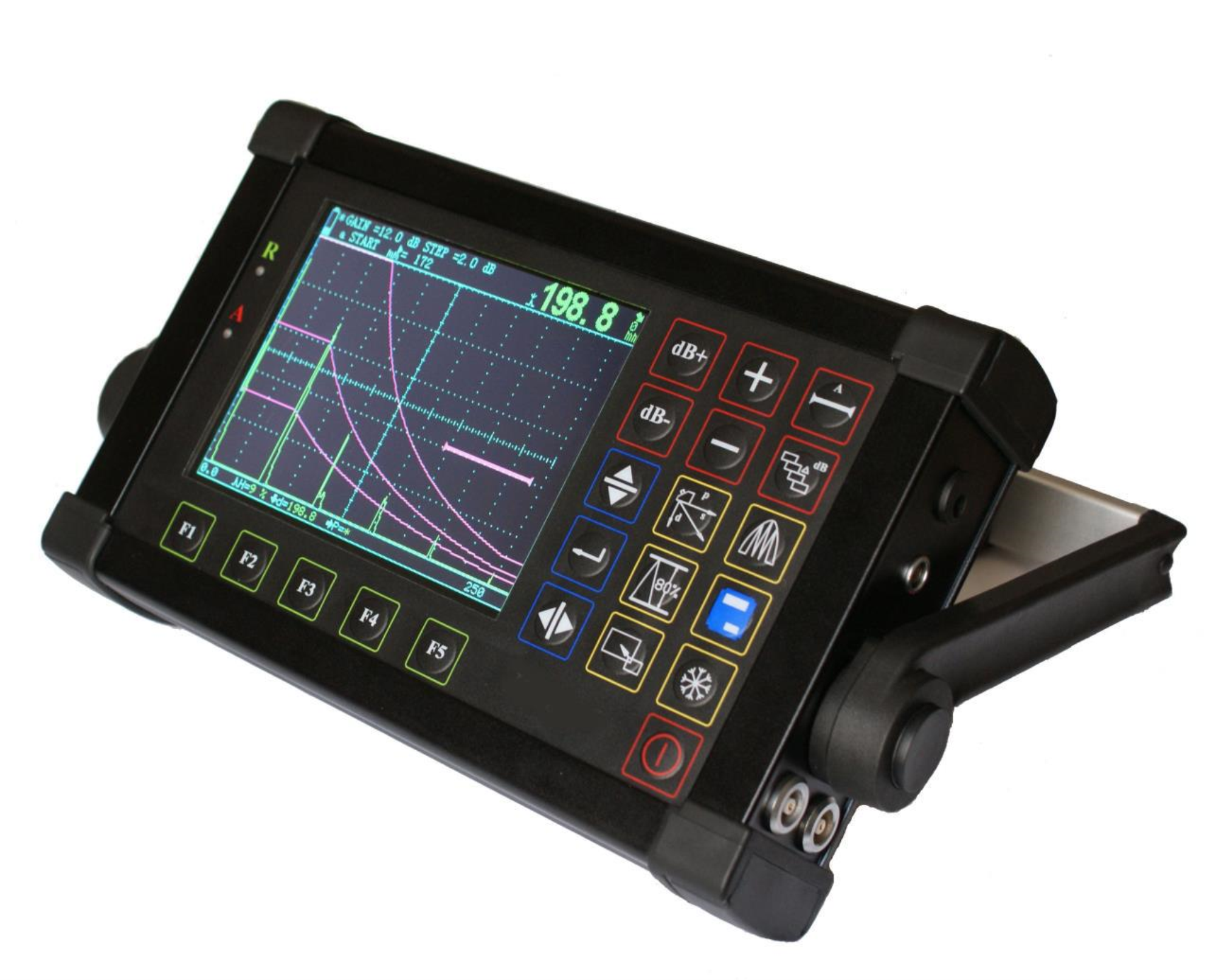

DAC AVG & B scan Dual 4A Ultrasonic Flaw Detector TFD320 for Gate and DAC alarm& 5 MINUTES VIDEO

PRODUCT INFO

·Automated calibration Automated gain
·Automated make video of test process and play
·DAC AVG & B scan, AWS function, 6dB DAC
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel through RS232/ USB interface

Features

· Automated display precise flaw location(Depth d, level p, distance s, amplitude, sz
dB, ф)
· Automated switch three staff gauge ((Depth d, level p, distance s)
· Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
· Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
· 100 independence setup, any criterion can be input freely, we can work in the scene without test block
· Big memory of 300 A graph and 30000 thickness value
· Automated gain and gain scan
· Automated make video of test process and play
· Peak Hold and Peak Memory
· B scan
· Powerful pc software and reports can be export to excel
· The embeded software can be online updated
· Li battery, continue working time up to 10 hours

Other Assistant Function

· Display freeze;
· Automated echo degree;
· Angles and K-value;
· Lock and unlock function of system parameters;
· Dormancy and screen savers;
· Electronic clock calendar ;
· Two gates setting and alarm indication;
· Gate and DAC alarm;

Specification

Title Parameter Title Parameter
Measuring Range(mm) 2.5 ~  10000 Measurement Mode Single, Dual, Thru
Vertical Linearity Error ≤3% Reject 0~80%
Horizontal Linearity ≤0.1% Pulse Displacement(μs) -20 ~  +3400
Error
Sensitivity Leavings ≥62dB Zero(μs) 0.0 ~  99.99
Dynamic range ≥34dB Port Type BNC
Resolving Power ≥36dB Operating -20~50
Temperature  (℃)
Frequency 0.5 ~  20 H×W×D(mm) 210×156×40
Range(MHz)
Gain(dB) 0 ~  110 Weight(kg) 1.0
Material Velocity(m/s) 1000 ~  13000



TFD320 Standard Configuration

No. Item Quantity
1 Main Body TFD320 1
2 Straight Beam Probe 1
3 Angle Probe 1
4 Machine-probe Cable 2
5 Battery Module 1
6 Power Adapter (Charger) 1
7 Manual 1
8 Instrument Case 1
9 Datapro Software 1
10 USB communication Cable 1
