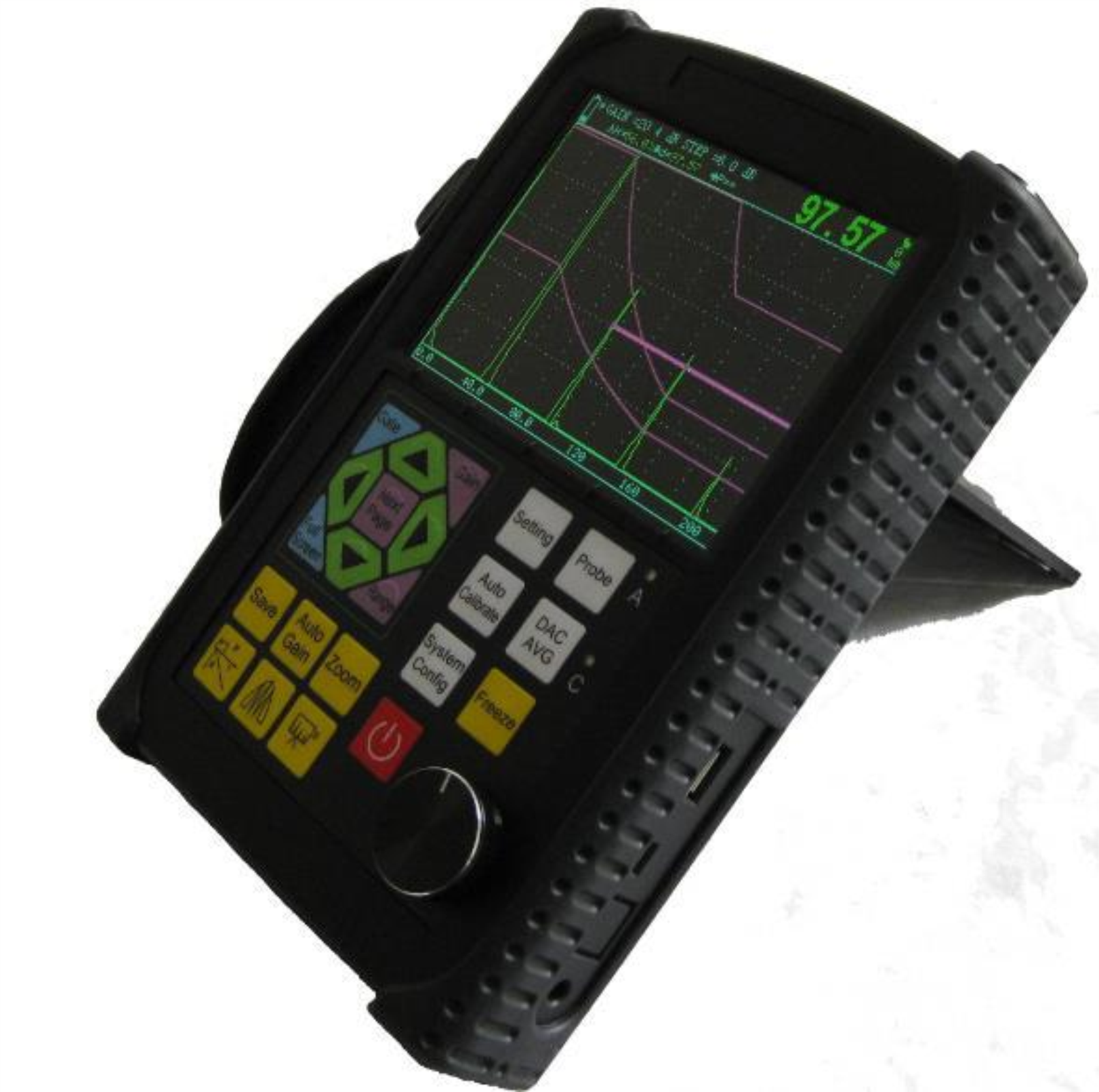

USB memory knob digital ultrasonic flaw detector TFD800C mini total 1kg with battery. Simple operation with fast rotary knob adjustments use in direct sunlight and operation at extreme temperatures…

PRODUCT INFO

Automated calibration Automated gain
·Automated make video of test process and play
·AWS D1.1,DAC (6dBDAC), AVG, TCG & B scan,28 DGS curves Pulse can be adjusted by customer
High-speed capture and very low noise
·Solid metal housing (IP65), rubber plastic dust cover included
·High contrast viewing of the waveform from bright ·Powerful pc software and reports can be export to excel
Small size, light weigh model, total 1kg with battery
Knob design, fast operation
USB memory stick for no limit data transmission

Features

· Automated calibration of transducer, angle, Zero point and Velocity
· Automated gain,Peak Hold and Peak Memory
· Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz
dB,)
· Automated switch three staff gauge ((Depth d,level p,distance s)
· 100 independence setup, any criterion can be input freely, we can work in the scene without test block
· Big memory of 1000 A graph
· RS232/USB 2.0 port,communication with pc is easy
· The embeded software can be online updated
· Li battery, continue working time up to 10 hours
· Display freeze
· Automated echo degree
· Angles and K-value
· Lock and unlock function of system parameters
· Dormancy and screen savers
· Electronic clock calendar
· Two gates setting and alarm indication
· High-speed capture and very low noise
 Automated make video of test process and play, USB memory disk,no limit for video time.

Main Technical Index

· Display freeze;
· Automated echo degree;
· Angles and K-value;
· Lock and unlock function of system parameters;
· Dormancy and screen savers;
· Electronic clock calendar ;
· Two gates setting and alarm indication;
· Gate and DAC alarm;

TFD800C Standard Configuration

Title Parameter Title Parameter
Measuring Range(mm) 0 ~  10000 Measurement Mode Single,Dual,Thru
Vertical Linearity Error ≤3% Reject 0~80%
Horizontal Linearity ≤0.1% Pulse Displacement(μs) -20 ~  +3400
Error
Sensitivity Leavings ≥62dB Zero(μs) 0.0 ~  99.99
Pulse Displacement ≥34dB Port Type BNC
Resolving Power ≥36 Operating -20~50
Temperature  (℃)
Frequency 0.5 ~  20 H×W×D(mm) 210×156×40
Range(MHz)
Gain(dB) 0 ~  120 Weight(kg) 1.0 (with battery)
Material Velocity(m/s) 1000 ~  15000


TFD320 Standard Configuration

No. Item Quantity
1 Main Body TFD320 1
2 Straight Beam Probe 1
3 Angle Probe 1
4 Machine-probe Cable 2
5 Battery Module 1
6 Power Adapter (Charger) 1
7 Manual 1
8 Instrument Case 1
9 Datapro Software 1
10 USB communication Cable 1
