MAIN FEATURES
Can use various probe (F400, F1, F1/90 °, F10, N1, N400, etc.) measurement; Three calibration methods: one point calibration, two point calibration, the basic calibration;
Display resolution: 0.1 um (measuring range of less than 100 um)
1um (range greater than 100 um)
Have five statistics, data storage 500
There are two working methods: direct ways and means of group
There are two measurements: continuous measurement and a single measurement
There are two shutdown: manual and automatic shutdown shutdown
Can be set Bound: The gauge of the measured value can be automatic alarm and a number of measurements available on the histogram value analysis; Deleted features: the gross error and error settings can be deleted; Printing: Print Measurement measurement, statistics, gauges, histogram
A music tone in the operation carried out at any time tips A power supply under-voltage direct function
An error function
And printers, computer communications (communications software operating environment for the Window operating system) connectivity.
Technical Specifications
| Measuring range | 0-1250 umwith standard probe F1.N1 | ||||
| (10.000um max) | |||||
| Probes available | 5 probes available for F (ferrous: on | ||||
| steel/iron) and N (non-ferrous metals) | |||||
| Tolerance | F1:±(1um+3%H) N1.±(1.5um+3% H) | ||||
| H: actual thickness tested | |||||
| Operation language | English | ||||
| Standards | DIN, ISO, ASTM,BS | ||||
| Min. measuring area | F1:(standard probe) | ||||
| Min. curvature radius | convex:3mm, concave:50mm | ||||
| Min. substrate | type F: 0.5mm, type N: 50mm | ||||
| thickness | |||||
| Calibration | Zero and foil calibration | ||||
| Statistics | Number of measurements, mean, | ||||
| standard deviation, | |||||
| maximum and minimum of | |||||
| 3000readings | |||||
| Data memory | 500 measuring data | ||||
| Limits | Adjustable with acoustic alarm | ||||
| Interface | USB 1.0 | ||||
| Operating temperature | 0-40℃ | ||||
| power supply | AA size 1.5V | ||||
| Dimensions | 125*67*31mm (main unit) | ||||
| Weight | 345.g | ||||
Standard Delivery
| Main Unit | 1 |
| Probe F1 or N1 | 1 |
| Calibration Foils | 5 |
| Instruction Manual | 1 |
| Cetificate | 1 |
| Warranty Card | 1 |
| Carrying Case | 1 |
| Communication cable | 1 |
| PC software Dataview | 1 |
Optional accessories
5 probes for different applications
Calibration foils in various thickness

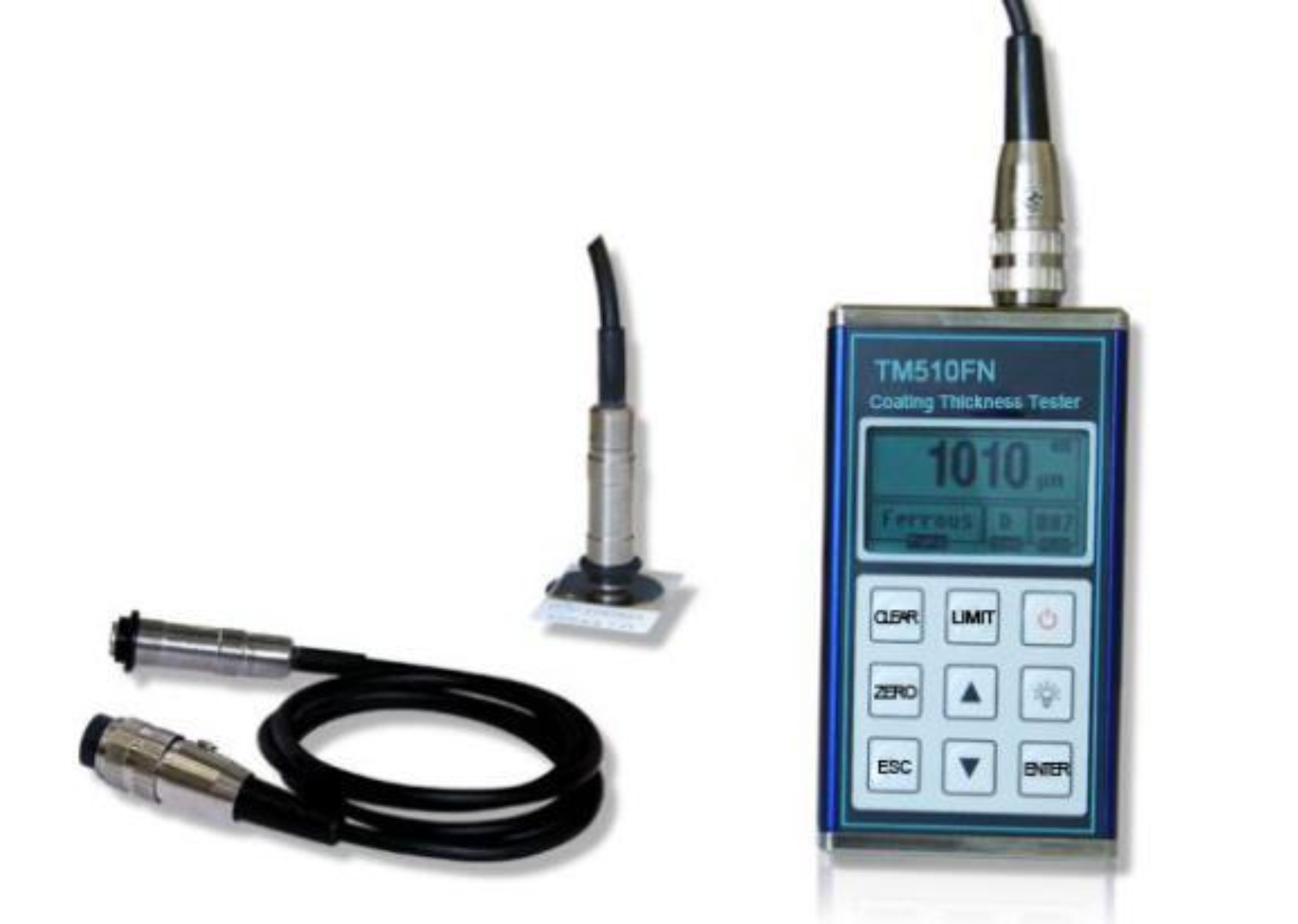

Option probes for TM510FN
Type F probe ：
| Probe | F400 | F1 | F1/90° | F10 | |||||
| Measuring Principle | Magnetic method | ||||||||
| Measuring range(mm) | 0～400 | 0～1250 | 0～10000 | ||||||
| Min resolution(mm) | 0.1 | 0.1 | 10 | ||||||
| One-point | |||||||||
| calibration | ±(2%H+0.7) | ±(2%H+1) | ±(2%H+10) | ||||||
| (mm) | |||||||||
| Tolerance | |||||||||
| Two-point | ±(1%H+ | ||||||||
| calibration | ±((1%H+1) | ±(1%H+10) | |||||||
| 0.7) | |||||||||
| (mm) | |||||||||
| Minimum | radius | of | 1 | 1.5 | flat | 10 | |||
| curvature (convex) (mm) | |||||||||
| Minimum | measuring | F3 | F7 | F7 | F40 | ||||
| area(mm) | |||||||||
| Minimum | thickness | of | 0.2 | 0.5 | 0.5 | 2 | |||
| base material(mm) | |||||||||
