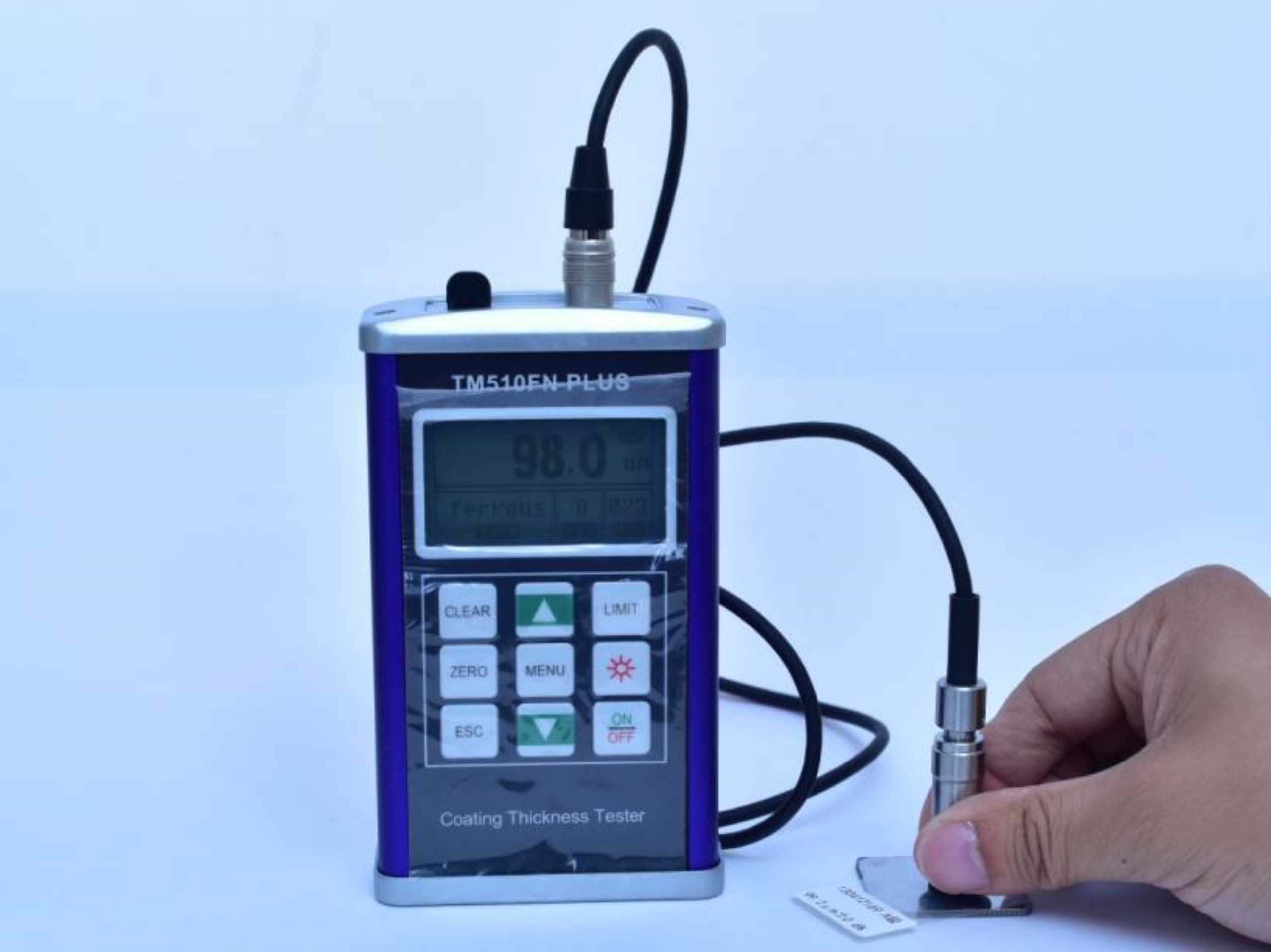

MAIN FEATURES
Can use various probe (F400, F1, F1/90 °, F10, N1, N400, etc.) measurement; Three calibration methods: one point calibration, two point calibration, the basic calibration;
Display resolution: 0.1 um (measuring range of less than 100 um)
1μ m (range greater than 100 u m)
Have five statistics, data storage 500
There are two working methods: direct ways and means of group
There are two measurements: continuous measurement and a single measurement
There are two shutdown: manual and automatic shutdown shutdown
Can be set Bound: The gauge of the measured value can be automatic alarm and a number of measurements available on the histogram value analysis; Deleted features: the gross error and error settings can be deleted; Printing: Print Measurement measurement, statistics, gauges, histogram
A music tone in the operation carried out at any time tips A power supply under-voltage direct function an error function
And printers, computer communications (communications software operating environment for the Window operating system) connectivity.
Technical Specifications
Measuring range | 0-1250µ with standard probe F1.N1 | |
(10.000mm | max) | |
Probes available | 5 probes available for F (ferrous: on | |
steel/iron) and N (non-ferrous metals) | ||
Tolerance | F1:±(1µ+3%H) N1.±(1.5µ+3% H) | |
H: actual thickness tested | ||
Resolution | Alphanumeric with 4 large digits | |
Operation language | English | |
Standards | DIN, ISO, ASTM,BS | |
Min. measuring area | F1:(standard probe) | |
Min. curvature radius | convex:3mm, concave:50mm | |
Min. substrate | type F: 0.5mm, type N: 50mm | |
thickness | ||
Calibration | Zero and foil calibration | |
Statistics | Number of measurements, mean, | |
standard deviation, | ||
maximum and minimum of | ||
3000readings | ||
Data memory | 500 measuring data | |
Limits | Adjustable with acoustic alarm | |
Interface | USB 2.0 | |
Operating temperature | 0-40℃ | |
power supply | AA size 1.5V | |
Dimensions | 125*67*31mm (main unit) | |
Weight | 345.g |
Standard Delivery
Main Unit | 1 |
Probe F1 or N1 | 1 |
Calibration Foils | 5 |
Instruction Manual | 1 |
Cetificate | 1 |
Warranty Card | 1 |
Carrying Case | 1 |
Communication cable | 1 |
PC software Dataview | 1 |
Optional accessories
5 probes for different applications
Calibration foils in various thickness
Type F probe :
Probe | F400 | F1 | F1/90° | F10 | ||||||
Measuring Principle | Magnetic method | |||||||||
Measuring range(mm) | 0~400um | 0~1250 | 0~10000 | |||||||
um | ||||||||||
Min resolution(mm) | 0.1 | 0.1 | 10 | |||||||
One-point | ||||||||||
calibration | ±(2%H+0.7) | ±(2%H+1) | ±(2%H+10) | |||||||
Tolerance | (mm) | |||||||||
Two-point | ||||||||||
calibration | ±(1%H+0.7) | ±((1%H+1) | ±(1%H+10) | |||||||
(mm) | ||||||||||
Minimum | radius | of | 1 | 1.5 | flat | 10 | ||||
curvature (convex) (mm) | ||||||||||
Minimum | measuring | F3 | F7 | F7 | F40 | |||||
area(mm) | ||||||||||
Minimum | thickness | of | 0.2 | 0.5 | 0.5 | 2 | ||||
base material(mm) | ||||||||||
Type N probe :
Probe | N400 | N1 | CN02 | |||||
Measuring Principle | Eddy current method | |||||||
Measuring range (mm) | 0~400 | 0~1250 | 10~200 | |||||
Min resolution(mm) | 0.1 | 0.1 | 1 | |||||
One-point | ±(2%H+0.7) | ±(2%H+1.5) | ±(2%H+1) | |||||
calibration | ||||||||
Tolerance | ||||||||
Two-point | ±(1%H+0.7) | ±(1%H+1.5) | ——– | |||||
calibration | ||||||||
Minimum | radius | of | 1.5 | 3 | flat | |||
curvature | (convex) | |||||||
Minimum | measuring | F4 | F5 | F7 | ||||
Minimum | thickness | of | 0.3 | 0.3 | 0 | |||
base material(mm) | ||||||||
Note:H——Measured Value
